10.3125Gbps,850nm,4路收发一体光？

特性
● 4路发送、4路接收并行光纤通道
● 单通道速率达10.3125Gbps850nm VCSEL/PD阵列技术
● 高速数据差分信号I/0 □兼容CML/LVDS/PECL电平50um多模光纤
● 3.3V单电源供电
● 独立的通道失效监控
● 两线模式的串行数据接口
● 紧凑的结构设计，高密度高容量
● 事情温度：
工业级/-40℃~+85℃
扩展工业级/-55℃~+85℃

应用
● 高密度高速光互连
● 雷达与处理机互联
● 甚短距离的高速数据通信
● 效劳器与存储器阵列互联

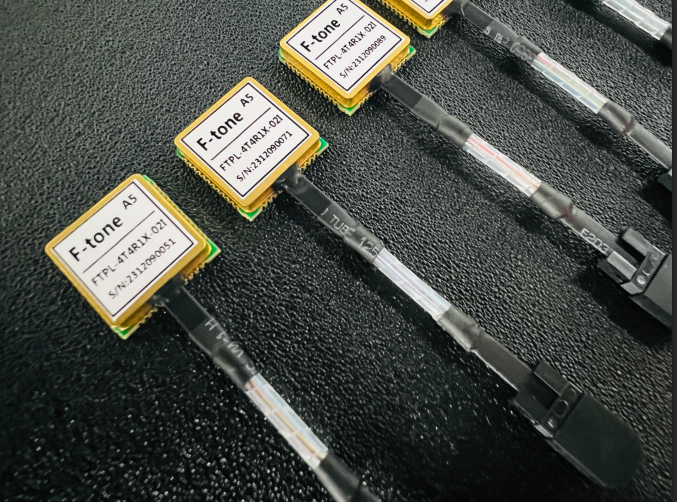

产品图

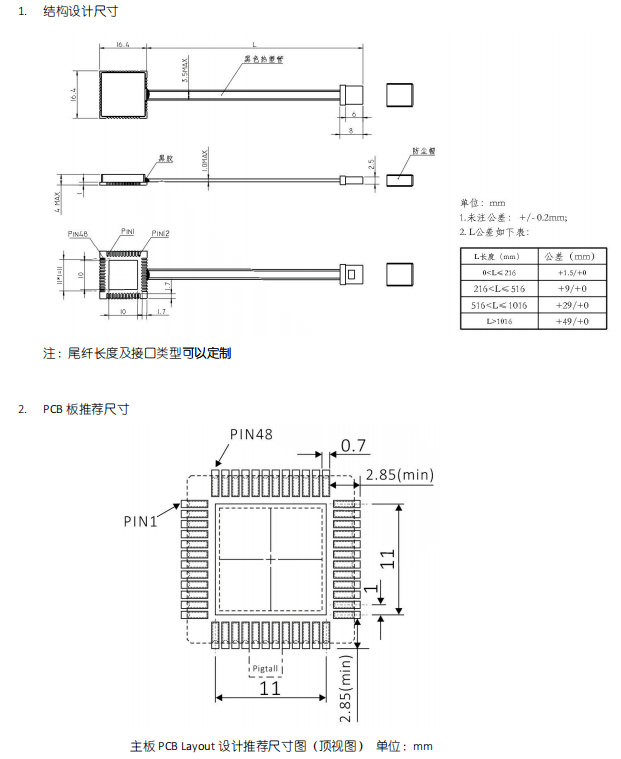

结构设计尺寸

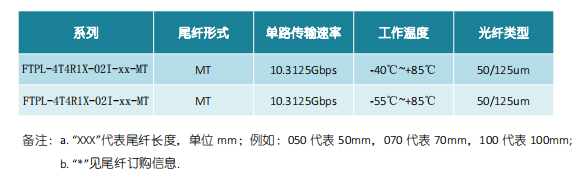

订购信息

 本产品为FTPL系列，仅展示部分参数，如有需要，请联系新利体育luck18
。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
