1、产品外形及尺寸及详细要求

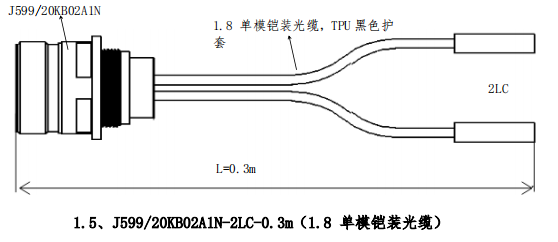

1.5.型号说明:产品一端为 1 个 J599/20KB02A1N 插座,另一端为 2 个 LC 接头,光缆 为 1.8mm 单模铠装光缆,TPU 玄色护套,长度 0.3m
链路损耗: ≦0.6+0.3+0.4dB/km*Lm (1310nm)

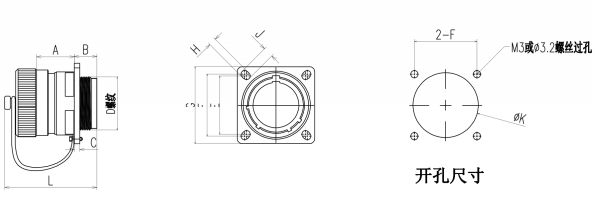

2、插头插座外形尺寸图
壳体号 |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
11# |
20.8 |
10.7 |
2.5 |
M15*1.0 |
18.30 |
20.62 |
26.20 |
3.25 |
4.89 |
20.22 |
41.10 |
3、光缆组件参数
性能参数 |
指标要求 |
插拔次数 |
500次 |
材质 |
不锈钢材质 |
防护品级 |
IP67 |
盐雾性能 |
48H |
事情温度 |
-40℃~+85℃ |
连接器损耗 |
≦0.6dB |
光缆组件坚持力 |
/ |
4、光缆参数

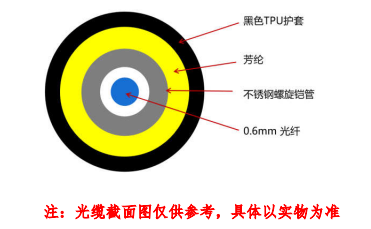

4.1 光缆截面图
4.2 光缆特性
光缆外径 |
1.8±0.2mm |
最小弯曲半径 |
|||
光纤模式 |
单模 |
静态 |
10D |
动态 |
20D |
光纤衰减 (成缆后) |
≤0.4dB/km@1310nm |
光缆抗拉力 |
|||
|
|
恒久 |
500N |
短期 |
800N |
事情温度 |
压扁力 |
||||
-40 °C to +85 °C |
恒久 |
2000N/10cm |
短期 |
3000N/10cm |
5、包装规范
1、产品独立包装袋包装,每袋 1 条,及格证在 PE 袋子里
2、随货附发货清单及检测报告
3、ZLTC 包装或中性包装
注:本产品有全国产化型号可选
