J599MT多模插头带1个MT尾纤,200m
产品性能
产品主要性能指标:
a)机械性能
机械寿命: 500 次插拔循环
攻击: 加速 490m/s2,连续时间 11ms
振动: 10 Hz~2000 Hz,加速度 147 m/s2
b)情况性能
事情温度: -40 ℃~+80 ℃
盐雾: K 类 1000 h,F 类 48 h,W 类 500 h
c)光学性能
插入损耗: ≤0.6 dB

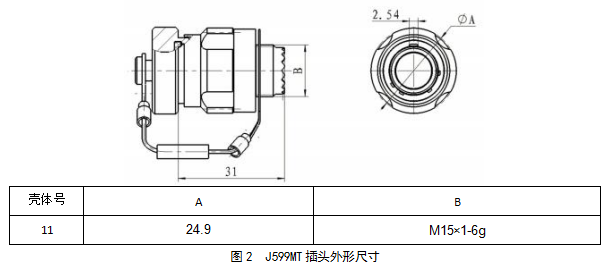

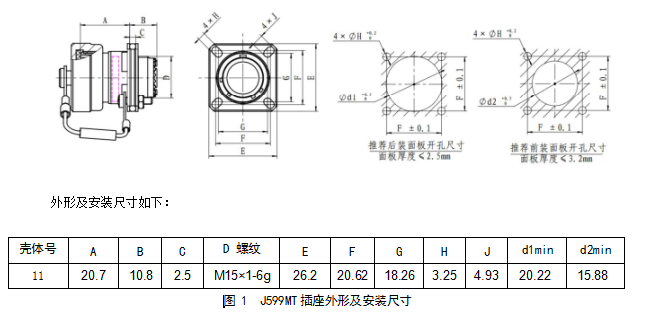

外形及装置尺寸
产品接点排列(插座插合面)

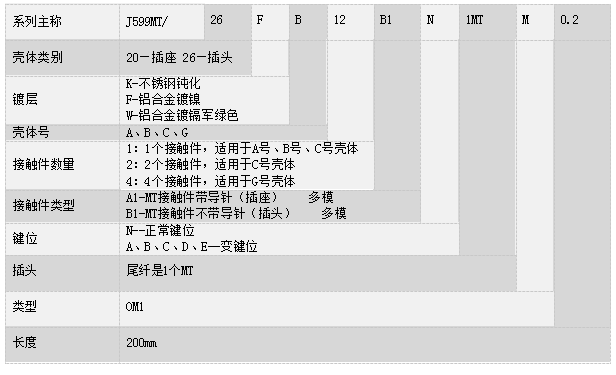

型号示例
例 1: J599MT/26FB12B1N-1MT-M0.2,体现 J599MT 插头,B 号壳体,镀层为铝合金镀镍,接触件为 1 个 12 芯 MT 插针,N 键位,1MT为尾纤是1个MT,M为OM1,长度为200mm。

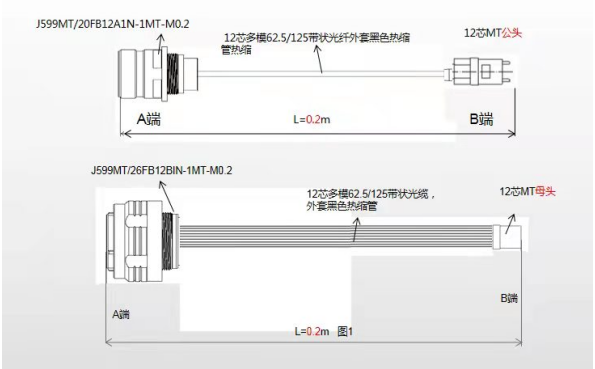

示意图
注:本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
