QSFP+ SR4 (FTCQ-4X-SR4)

QSFP+ SR4 (FTCQ-4X-SR4)

0.0/5 rating (0 votes)

Description

Description
The F-tone Networks Technologies FTCQ-4X-SR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 11.3 Gbps up to 100 m using OM3 fiber or 150 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
● 4 channels full-duplex transceiver modules
● Transmission data rate up to 11.3Gbps per channel
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Low power consumption <1.5W
● Hot Pluggable QSFP form factor
● Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
● Single MPO connector receptacle
● Operating case temperature 0°C to +70°C
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)

Applications
● 40G Ethernet and OTU3
● Datacom/Telecom switch & router connections
● Data Aggregation and Backplane Applications
● Proprietary Protocol and Density Applications
● Infiniband transmission at 4ch SDR, DDR and QDR

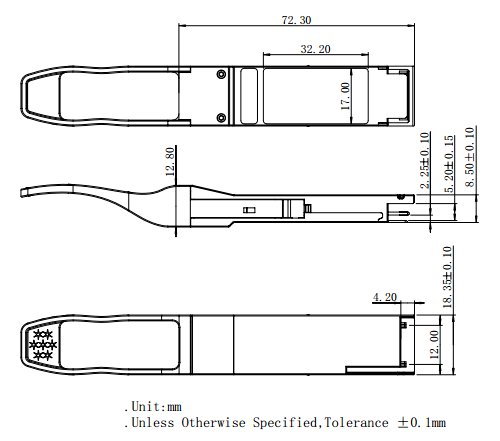

Mechanical DimensionsFTCQ 4X SR4

Ordering information

Part Number

Product Description

FTCQ-4X-SR4

QSFP+ SR4, 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

References

1. SFF-8436 QSFP+

2. Ethernet 40GBASE-SR4













本产品为25G~400G高速光 ?橄盗,如有需要,请联系新利体育luck18。

注:本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
