JY599/20EGP光缆组件
1、型号
①4JY599/20EGP-4LC-MIN1.8-L3.5/0.3
型号说明:左端为4只JY599/20EGP扩束光纤接触件,右端为4只LC插头,使用1.8mm OM3 TPU OM3铠装光缆,光缆总长3.5米,分支长度0.3米。
2、产品功效
该光缆组件用于传输4路1300nm、850nm波长光信号。
3、光缆组件外形及尺寸

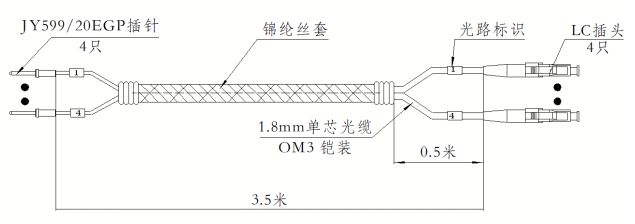

①光缆组件外形图
② 光路对应关系为一一对应;
③ JY599/20EGP为20#扩束接触件,接J599 20#孔位的插座。
4、参数产品性能
项目 |
参数 |
传输模式 |
多模OM3 |
事情波长 |
850nm、1300nm |
插入损耗 |
JY599/20EGP≤0.6dB,LC≤0.2dB |
事情温度 |
-40℃~+85℃ |
注:本产品有全国产化型号可选
